Stock: Available
Price: Not Mension
Buy: In our Dubai shop. Out of Dubai, Call Us
Install: Using with access control system
Brand: Fox Tech
Share This

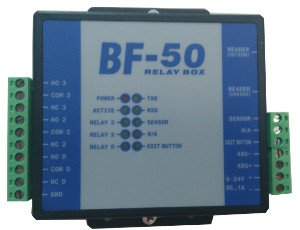

Tweet- 2Compatible with FX-670/ FX-870/ FX-630/ FX-830/ SEMAC/ WEBPASS/ WG Reader
- To detect door sensor, short circuit or open circuit.
- Built-in Watch-dog.
- 2 Wiegand inputs (indoor/ outdoor)
- Integrated with exit button, door sensor, and Wiegand reader device.
- RS485 communication control relay for providing the high security level.
| Wiegand Input | 2 (WG26/34 Auto detect) |
| Communication Interface | RS-485 |
| Watch Dog | System halt prevention |
| Door Relay (Relay D) | 1 (3A / 30VDC) |
| Alarm Relay | 2 (3A / 30VDC) |
| Dry contact for Exit Button | 1 |
| Dry Contact for Sensor Self-detecting | 1 |
| Dry Contact for Reader Detecting | 2 |
| Dry Contact for Buzzer Control | 2 |
| Emergency Mode Contact | Yes (in the emergentcy mode, when controller is disconnected, exit button still could have function) |
| Detect Door Sensor | Yes |
| Buzzer | Enable/ disable |
| Maximum RS-485 Distance | 1000 m |
| Maximum Distance for Wiegand | 80 m |
| Door Number Setting | DIP Switch |
| Rated Power | 9 ~ 24V DC |
| Rated Current | 200 mA ~ 400 mA |
| Operation Temperature | 0℃ ~ 55℃ |
| Storage Temperature | -20℃ ~ 70℃ |
| Storage Humidity | 0%~ 90%RH |
| Dimension | 106 x 100 x 26.5 mm |
| Weight | 140 g. |
