Stock: Available
Price: Not Mension
Buy: In our Dubai shop. Out of Dubai, Call Us
Install: Taking as project
Maintenance: We provide maintenance services.
Brand: Fox Tech
Share This
Tweet- Adopts the standard H.264 compression technology, support 16channel recording, network transmission, and playback simultaneously
- Support dual-stream transmission for all channels
- Support multiplex operation: live, record, playback, backup, network transmission, mobile phone surveillance
-Support backup with USB Flash Disk, Movable hard disk, USB
writer, Network
-Support main output, VGA output
-Support mobile phone surveillance.

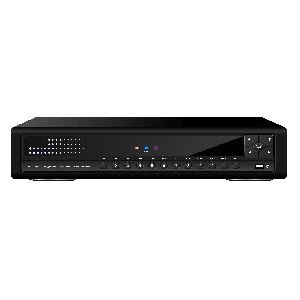

| Model | FX-9216V |
| Operating System | Embedded Linux OS |
| Video Compression | Main profile H.264 |
| Video Input | 16channel BNC |
| Video out | 1 channel BNC, VGA(1280*1024) |
| Display | 1/4/8/16 |
| Multiplex Operation | Live,Record,Network,,Playback,Backup |
| Display Resolution | PAL:D1(704*576),NTSC:D1（704*480） |
| Recording Resolution | PAL: D1(704*576),HD1(704*288), CIF(352*288) NTSC: D1(704*480),HD1(704*240), CIF(352*240) |
| Play Back | 1ch、4ch、8ch、16ch simultaneously(playback channel option) |
| Backup | USB Flash disk ,Movable hard disk ，USB Writer ,Network |
| Alarm | 16 channels input /4 channels output |
| Hard Disk | 1 SATA(one per 2T storage) |
| PTZ Control | PELCO-D,PELCO-P |
| Network port and Protocol | 1 RJ-45 10/100M，support TCP/IP、PPPOE、DHCP、DNS、DDNS、UPNP、NTP |
| user | Multi-level user authority distribution |
| Power | 12V/5A |
| Operating temp. | 0℃-50℃ |
| Dimension | 430*345*66mm(L*D*H) |
